Chairless Chair CNSH-300

Key Features:

• Model Number: CNSH-300

• Material: High-strength nylon

• Weight: Approx. 2000g

• Height: 5-level adjustable

• Angle: Adjustable (0–30°)

• Seat Width: 3-level adjustable

• Maximum Load Capacity: 150kg

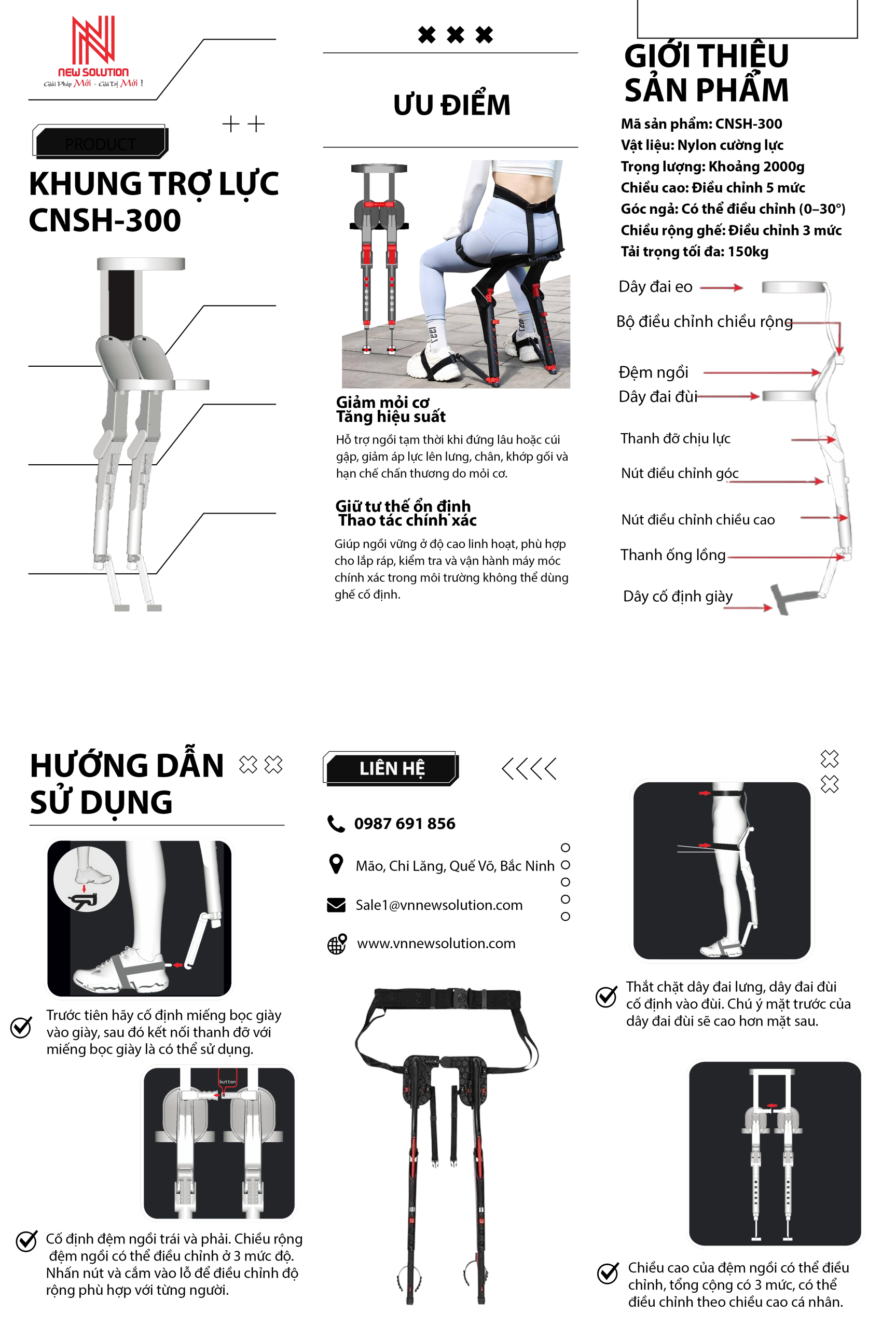

Structure & Components:

• Waist Belt: Secures the upper part of the frame to the user’s waist.

• Width Adjustment Device: Allows fitting for various hip widths.

• Cushion: Ergonomically shaped seat pad for comfort during extended use.

• Leg Bind: Adjustable thigh straps for stabilizing the system on the user’s legs.

• Load Bearing Support Rod: Transfers weight to the ground and supports body posture.

• Angle Adjustment Button: Controls tilt of the seat between 0–30°.

• Height Adjustment Button: Allows five levels of vertical adjustment to suit different users or working conditions.

• Telescopic Rod: Provides additional length adjustment for height customization.

• Shoe Retainer Strap: Connects the lower frame to the user’s footwear for stability.

Usage Instructions:

1. Adjust the seat width according to the user’s body by selecting among 3 available notches.

2. Secure the thigh straps above the knees (front should be slightly higher than the back).

3. Fix the shoe retainers properly to the footwear.

4. Fasten the waist belt firmly.

5. Adjust height and tilt as needed using the corresponding buttons.
