Low Profile Parallel Air Gripper XHF2-8D1

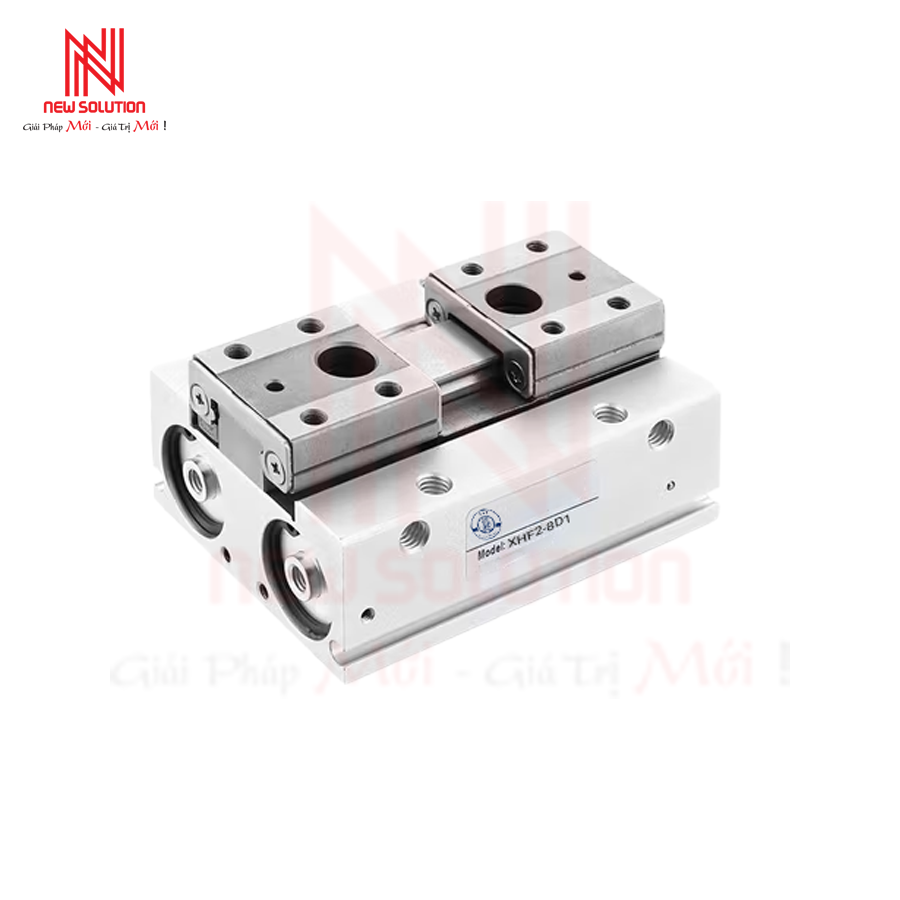

XHF2-8D1 – Low Profile Parallel Air Gripper

Specifications:

• Bore size: 8 mm

• Finger quantity: 2 pcs (parallel type)

• Action type: Double acting

• Working medium: Air (no lubrication)

• Operating pressure range: 0.15 ~ 0.7 MPa

• Ambient & fluid temperature: -10 ~ +60°C (no freezing)

• Repeatability precision: ±0.05 mm

• Max. motion frequency (cycles/min):

  • Short stroke: 120 c.p.m

  • Middle stroke: 120 c.p.m

  • Long stroke: 60 c.p.m

• Motion pattern: Double acting

• Effective grip power (each gripper): 19 N (at 0.5 MPa, grip power distance = 20 mm)

• Open/Close stroke (both sides): 8, 16, 32 mm

Ordering Code Explanation:

• Series code: XHF (Parallel type low profile air gripper)

• Finger quantity: 2 = 2 fingers

• Cylinder bore: 8 mm

• Action: D = Double acting

• Stroke: “1” = Middle stroke
